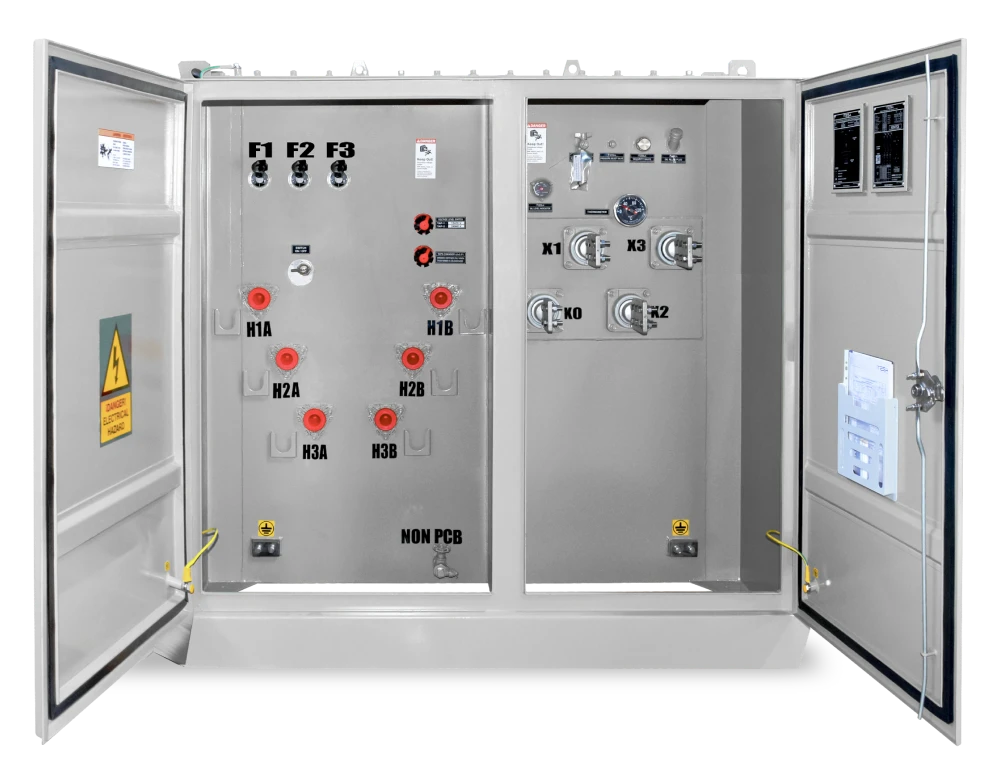

COMPACT PAD-MOUNTED TRANSFORMERS
Ideal for outdoor operation on a concrete pedestal, used for industrial, commercial, and residential loads. It does not require special safety equipment. Low noise emission and efficient overload support.
| Technical Data | |
|---|---|
| Power | From 25KVA to 300KVA |
| Nominal voltage H.V. | From 7.62kV to 33kV |
| Number of Terminals H.V. | 3/4/6 |
| Nominal voltage L.V. | 0.230/ 0.398/ 0.400/ 0.460/ 0.480kV |
| Connection Group | Dyn5 - Dyn11 - Dd6 - Dd0 - Yd5 - Yyn6 - Yyn0 |
| Nominal Frequency | 50/ 60 Hz |
| Design/Manufacturing and Testing Standards | IEC - 60076 |
| Insulator Material | Insert (Elastimold Type) |
| Operating Altitude Range | 1000 - 5000 meters above sea level |
| Protection Grade | IP; NEMA |
